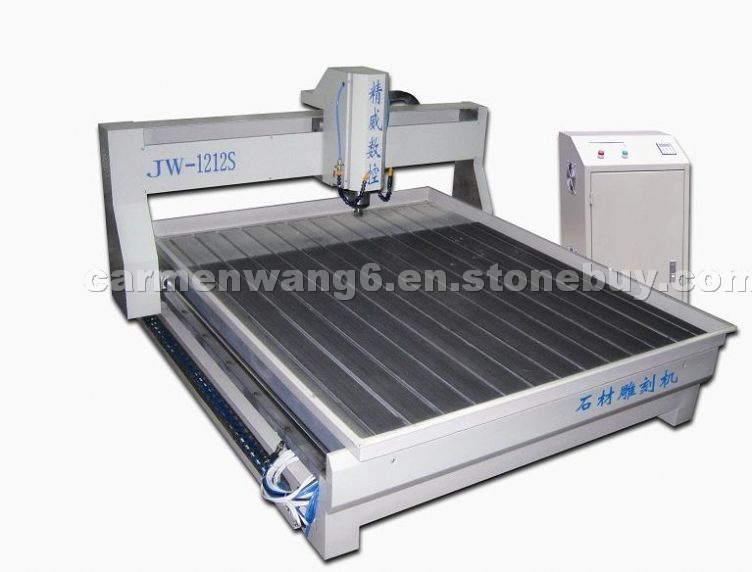

CNC Router JW-1212S

• Place of Origin:

   China

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1465125

• Place of Origin:

  China
• Standard Features:
  ●Adopted imported ball screw, our machine have long life, high precision. High quality fittings make machine drive smoothly.
  ●High-power converter motor, stepless converting speed, low noise. Equipped with carving knives and relief carving function.
  ●In possession of PC control system, dynamic display of three-dimensional tracking, automatic tool setting, breakpoint memory, 3D simulation display function.
  ●They can engrave many kinds of hard materials including marble, granite, glass, floor tile and metal.
  Technical Specifications:
  X travel 1200mm
  Y travel 1200mm
  Feed-in height 200mm
  Working area 1410*1420mm
  Machining precision 0.05mm
  Maximum carve speed 7m/min
  Power of main spindle 2.2kw
  Spindle speed 24000r/min
  Work mode Stepper
  Voltage AC220v/50Hz
  Command G/code*,u00*.mmg*.plt
  Operating system NCstudio/DSP handle
